Beams

As mentioned in the Rays section, a beam within the context of this package serves as a data structure for storing collections of rays, forming the backbone of the simulation framework. Beams are intended to be designed as AbstractTrees to allow for ray bifurcations, e.g. in the case of optical elements such as beamsplitters. The solve_system! function relies on this data structure to perform ray tracing computations within optical systems.

To ensure compatibility and extensibility, beam types must adhere to the BeamletOptics.AbstractBeam interface. Refer to its documentation for more information.

Basic beam

A minimal implementation of the BeamletOptics.AbstractBeam type is provided by the Beam. It can be used to store a light path through an optical system. If the beam is split, its children will be recursively traced until all paths are solved.

BeamletOptics.BeamType
Beam{T, R <: AbstractRay{T}} <: AbstractBeam{T, R}

Stores the rays that are calculated from geometric optics when propagating through an optical system. The Beam type is parametrically defined by the AbstractRay subtype that it stores.

Fields

  • rays: vector of AbstractRay objects, representing the rays that make up the beam
  • parent: reference to the parent beam, if any (Nullable to account for the root beam which has no parent)
  • children: vector of child beams, each child beam represents a branching or bifurcation of the original beam, i.e. beam-splitting
source

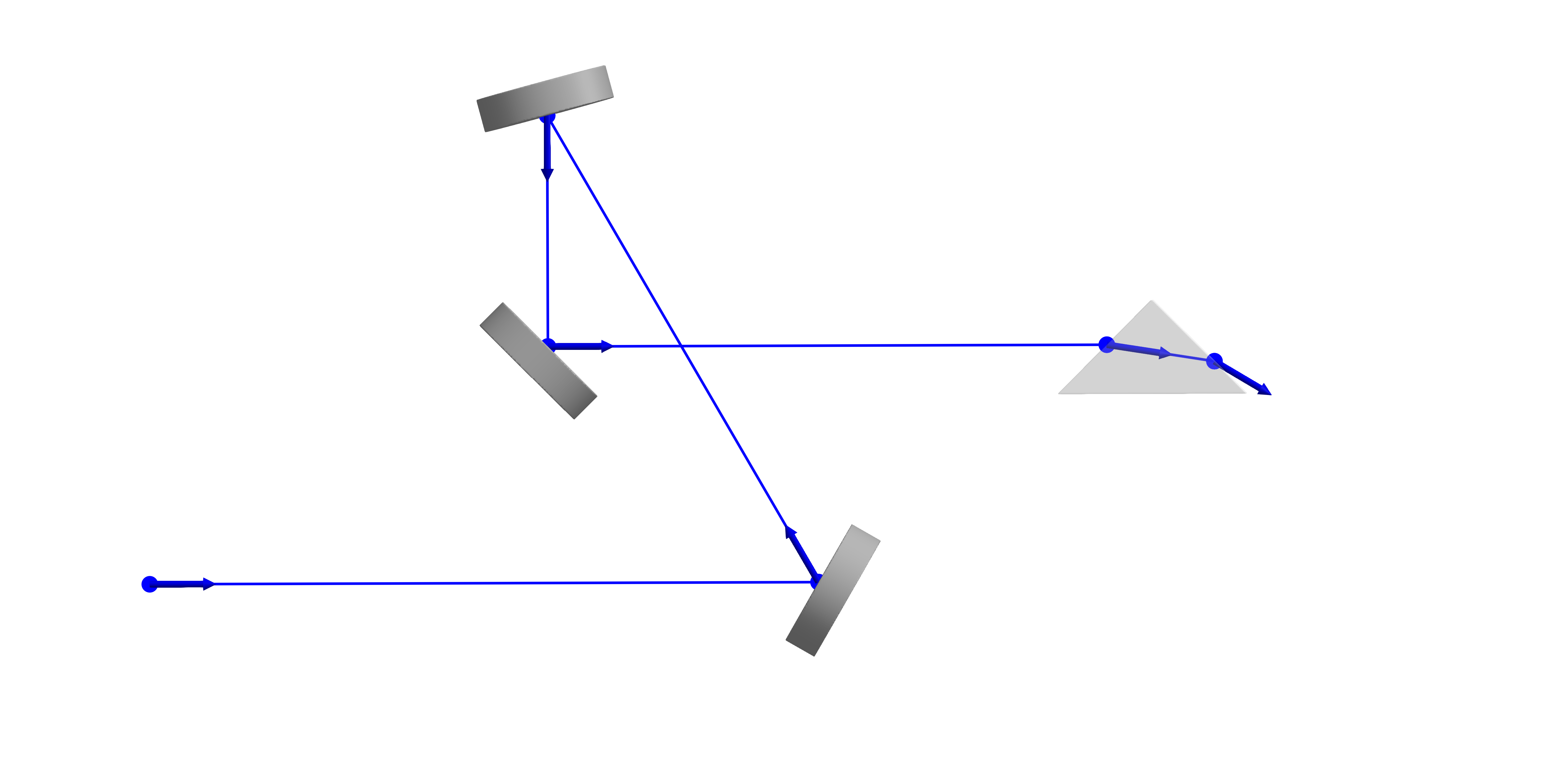

A ray tracing example through an arbitrary system using a Beam is shown below. Individual Ray segments are marked by their starting position and direction. The Beam expander and Miniature microscope tutorial covers the use of the Beam in more detail.

Beam structure

Beam groups

For convenience, the BeamletOptics.AbstractBeamGroup offers a container-like interface for groups of Beams as commonly used in other software packages. The following concrete implementations are currently provided:

julia> BeamletOptics.list_subtypes(BeamletOptics.AbstractBeamGroup);└── BeamletOptics.AbstractBeamGroup
    ├── CollimatedSource{T, R} where {T<:Real, R<:BeamletOptics.AbstractRay{T}}
    └── PointSource{T, R} where {T<:Real, R<:BeamletOptics.AbstractRay{T}}

At least 2 types have been found.

Refer to the following sections for convenience constructors to generate the sources listed above.

Collimated beam source

The collimated beam source is ideal to model light coming from a focal plane at infinity. This is useful for simulating plane wavefronts. You can define a collimated monochromatic Beam source as follows:

BeamletOptics.CollimatedSourceMethod
CollimatedSource(pos, dir, diameter, λ; num_rings, num_rays)

Spawns a bundle of collimated Beams at the specified position and direction. The source is modelled as a ring of concentric beam rings around the center beam. The amount of beam rings between the center ray and outer diameter can be specified via num_rings.

Info

Note that for correct sampling, the number of rays should be atleast 20x the number of rings.

Arguments

The following inputs and arguments can be used to configure the CollimatedSource:

Inputs

  • pos: center beam starting position
  • dir: center beam starting direction
  • diameter: outer beam bundle diameter in [m]
  • λ = 1e-6: wavelength in [m], default val. is 1000 nm

Keyword Arguments

  • num_rings: number of concentric beam rings, default is 10
  • num_rays: total number of rays in the source, default is 100x num_rings
Warning

The orthogonal basis vectors for the beam generation are generated randomly.

source

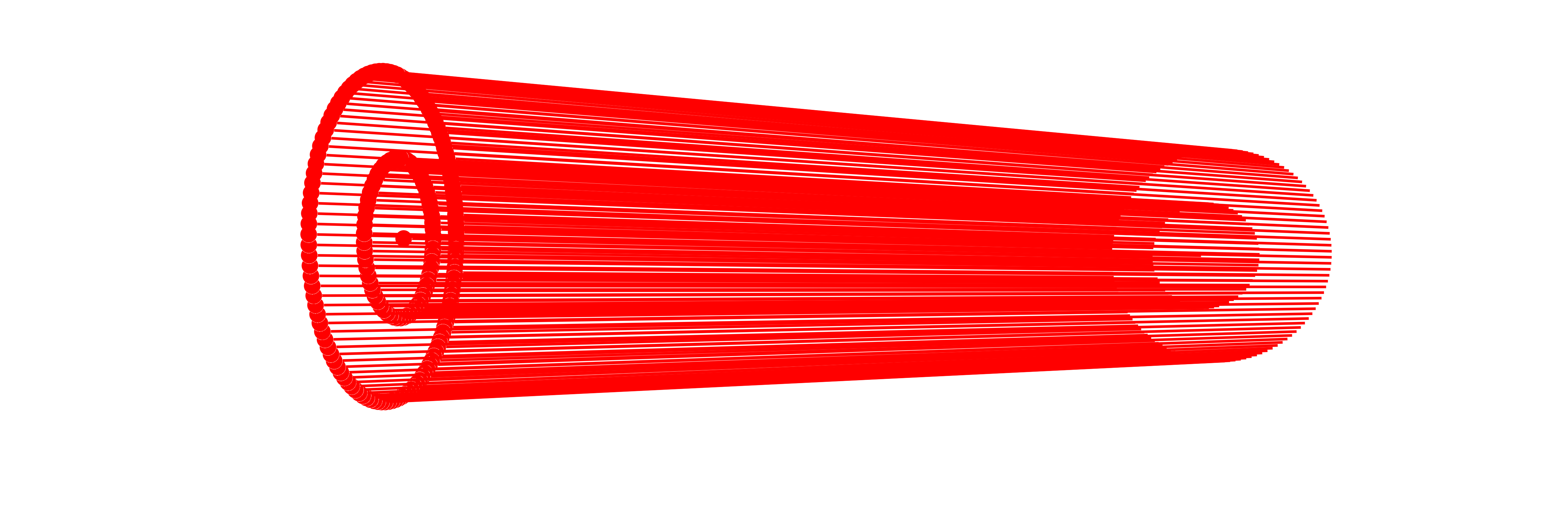

Collimated group of beams

A special constructor called UniformDiscSource is available, which offers an equal-area sampling (Fibonnaci-pattern) sampling and is thus favorable in situations where the weighting of the individual beams becomes important, e.g. for calculating a point spread function using PSFDetector.

BeamletOptics.UniformDiscSourceFunction
UniformDiscSource(pos, dir, diameter, λ; num_rays=1_000)

Generates a ray fan with equal area per ray across a circular pupil using the deterministic sunflower (Fibonacci) pattern.

Note

This is merely a CollimatedSource constructor which uses Fibonacci sampling instead of a linear grid.

Arguments

The following inputs and arguments can be used to configure the underlying CollimatedSource:

Inputs

  • pos: center beam starting position
  • dir: center beam starting direction
  • diameter: outer beam bundle diameter in [m]
  • λ = 1e-6: wavelength in [m]

Keyword Arguments

  • num_rays=1000: total number of rays in the source
source

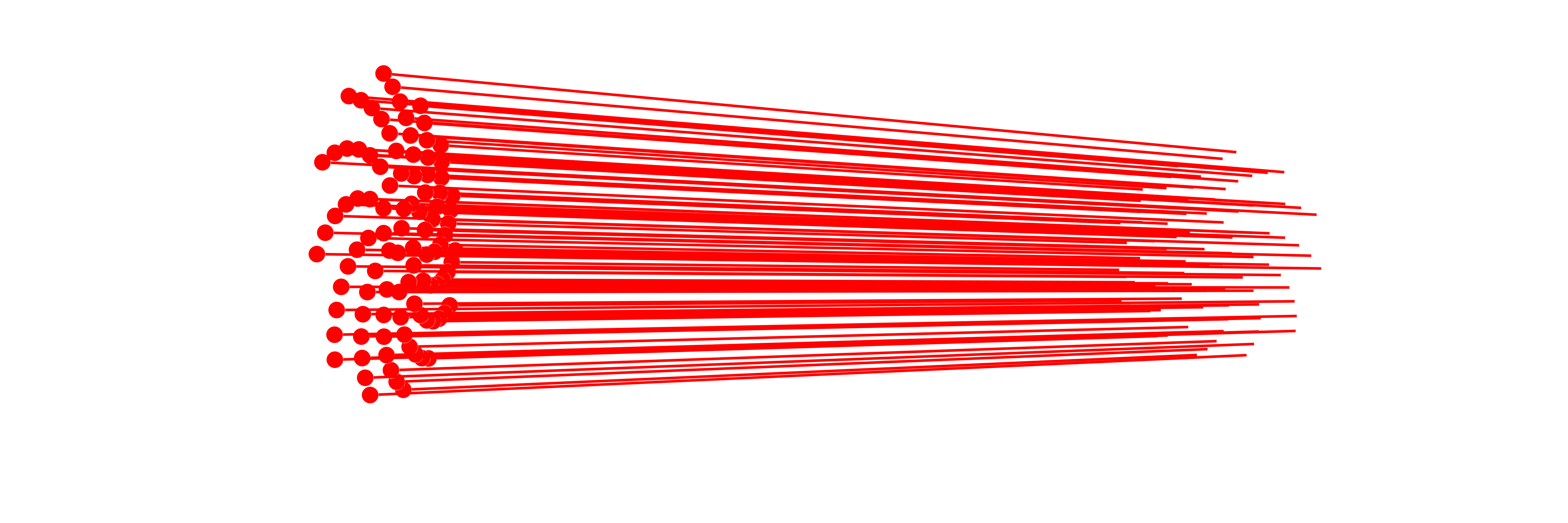

Collimated uniform group of beams

Point beam source

The PointSource type is used to model emission from a spatially localized source that radiates Beams in a range of directions. This is commonly used to simulate conical emission patterns, such as light emerging from a fiber tip or a light source for a lens objective with a known focal distance. You can specify the origin and a propagation direction, which are then used to construct the monochromatic PointSource.

BeamletOptics.PointSourceMethod
PointSource(pos, dir, θ, λ; num_rings, num_rays)

Spawns a point source of Beams at the specified position and direction. The point source is modelled as a collection of concentric beam fans centered around the center beam. The amount of beam rings between the center ray and half-spread-angle θ can be specified via num_rings.

Info

Note that for correct sampling, the number of rays should be atleast 20x the number of rings.

Arguments

The following inputs and arguments can be used to configure the PointSource:

Inputs

  • pos: center beam starting position
  • dir: center beam starting direction
  • θ: half spread angle in rad
  • λ = 1e-6: wavelength in [m], default val. is 1000 nm

Keyword Arguments

  • num_rings: number of concentric beam rings, default is 10
  • num_rays: total number of rays in the source, default is 100x num_rings
Warning

The orthogonal basis vectors for the beam generation are generated randomly.

source

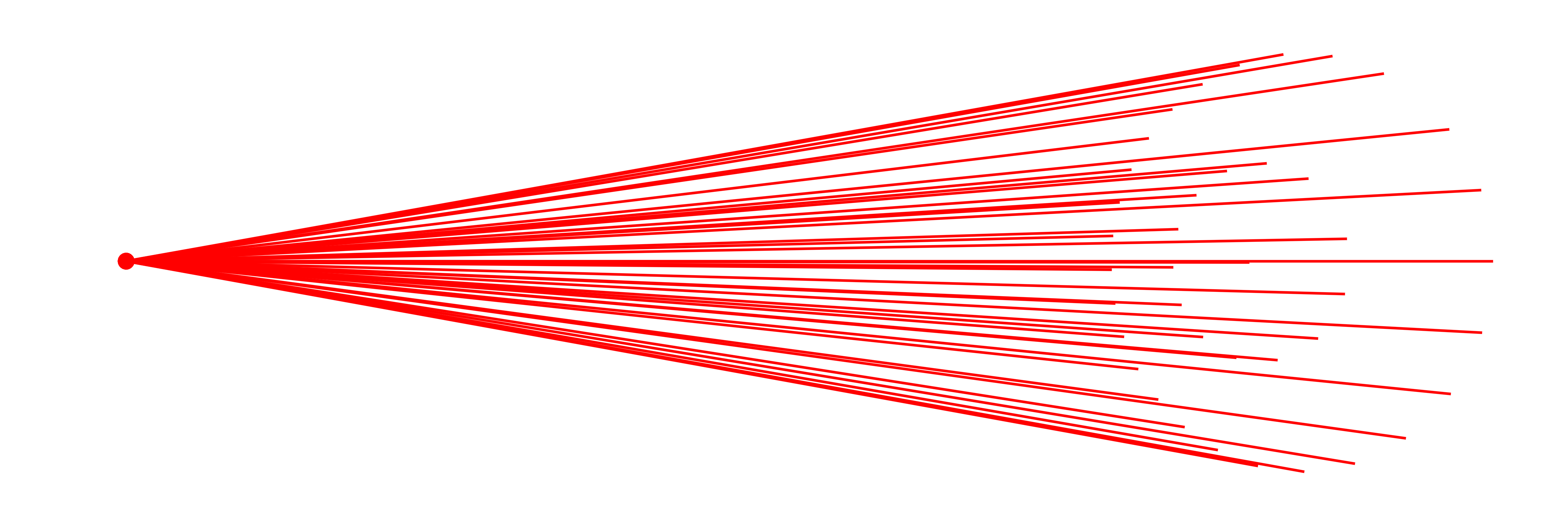

Below you can find an exemplary illustration of a PointSource.

Point source of beams

Gaussian beamlet

Lasers are common devices in modern optical laboratories. Modeling their propagation through an optical setup can be of interest when planning new experiments. Geometrical ray tracing struggles to capture the propagation of a laser beam correctly, since it can not inherently capture the wave nature of e.g. the Gaussian beam.

The electric field of the $\text{TEM}_{00}$ spatial Gaussian mode can be calculated analytically using the BeamletOptics.electric_field function:

BeamletOptics.electric_fieldMethod
electric_field(r, z, E0, w0, w, k, ψ, R) -> ComplexF64

Computes the analytical complex electric field distribution of a stigmatic TEM₀₀ Gaussian beam which is described by:

\[E(r,z) = {E_0}\frac{{{w_0}}}{{w(z)}}\exp\left( { - \frac{{{r^2}}}{{w{{(z)}^2}}}} \right)\exp\left(i\left[ {kz + \psi + \frac{{k{r^2}}}{2 R(z)}} \right] \right)\]

Arguments

  • r: radial distance from beam origin
  • z: axial distance from beam origin
  • E0: peak electric field amplitude
  • w0: waist radius
  • w: local beam radius
  • k: wave number, equal to 2π/λ
  • ψ: Gouy phase shift (defined as $-\text{atan}\left(\frac{z}{z_r}\right)$ !)
  • R: wavefront curvature, i.e. 1/r (radius of curvature)
source

The evolution of this field through an optical system can be modeled e.g. by the ray transfer matrix formalism using the complex $q$-factor [7, pp. 27]. A Julia-based implementation of this approach can be found in ABCDMatrixOptics.jl. However, in the case of this package another approach will be used.

Complex ray tracing

In 1968 an internal publication at Bell Labs by J. Arnaud introduced the concept of complex rays wherein three geometrical beams can be used to model the propagation of a Gaussian in fundamental mode through a symmetric optical system, i.e. without the Gaussian obtaining astigmatism and/or higher-order abberations. This method is analoguos to the ray transfer matrix based $q$-method [8].

Without extensions of the original method, the following key assumptions must be met such that this method can be applied

  • all (complex) beams of the Gaussian in question must intersect the same optical elements
  • the optical elements are large compared to the beam (waist)
  • the paraxial approximation must hold for each beam
  • the Gaussian may not be clipped by hard apertures
  • Lagrange invariant must be fulfilled

Various versions of this approach have been implemented under different names in commercial software, most notably FRED and Code V, as well as in open source software, e.g.

  • Raypier - based on Cython, maintenance status not known
  • Poke - based on Zemax API and Python, maintained by J. Ashcraft et al. [9]
  • IfoCAD - maintenance status not known, refer to Wanner et al. [10]

This package implements the above method via the GaussianBeamlet and the BeamletOptics.AstigmaticGaussianBeamlet (Work in progress).

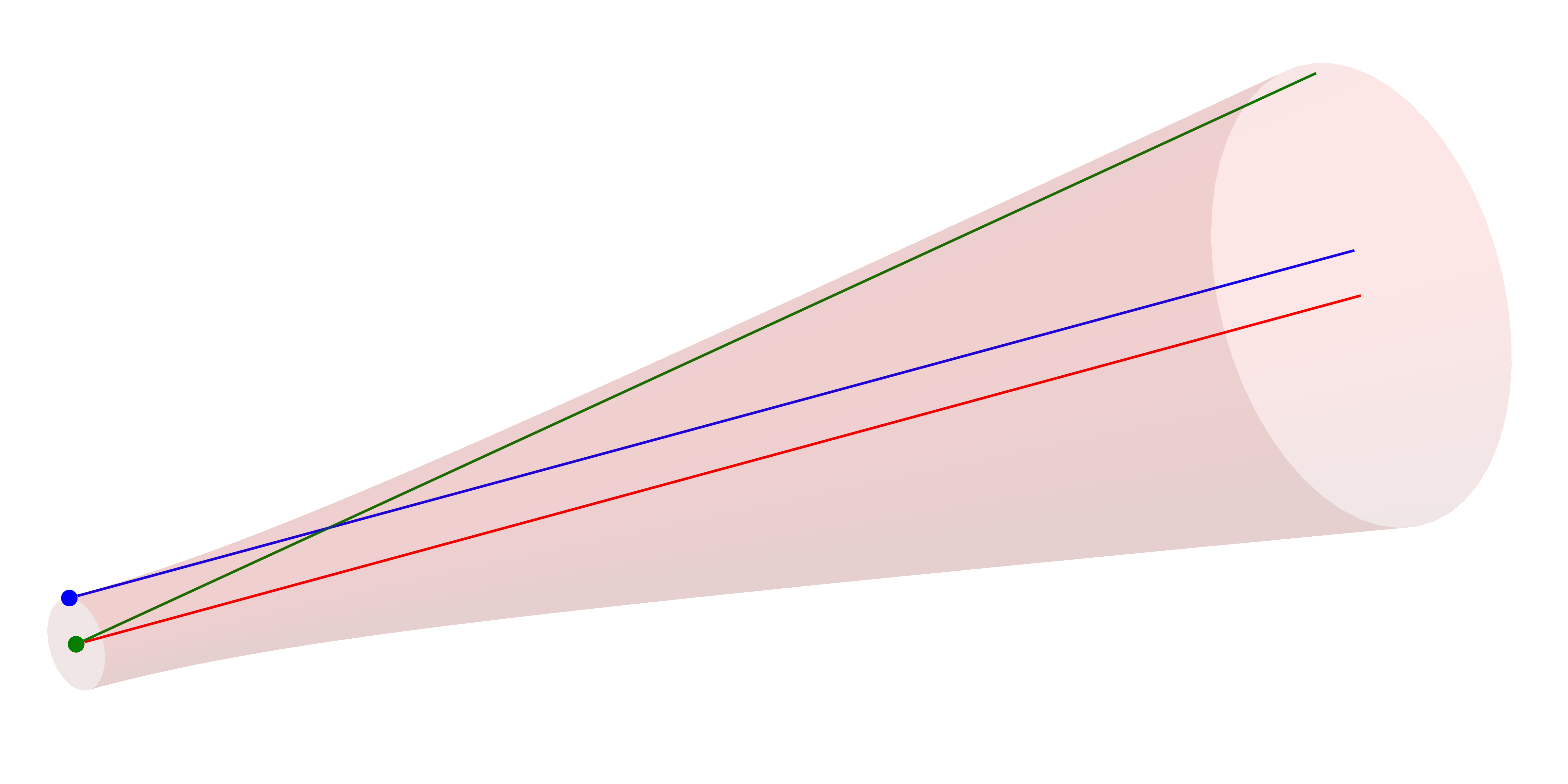

Stigmatic Beamlets

The GaussianBeamlet implements the BeamletOptics.AbstractBeam interface and can be used to model the propagation of a monochromatic Gaussian ($\text{TEM}_{00}$-mode) through optical system where all optics lie on the optical axis, e.g. no tip and/or tilt dealignment, and abberations can be neglected. It is represented by a chief (red), waist (blue) and divergence (green) beam. See below how these beans are placed in relation to the envelope of the Gaussian beam.

Complex ray tracing I

BeamletOptics.GaussianBeamletType
GaussianBeamlet{T} <: AbstractBeam{T, Ray{T}}

Ray representation of the stigmatic Gaussian beam as per J. Arnaud (1985). The beam quality M2 is fully considered via the divergence angle. The formalism for the beam parameter calculation is based on the following publications:

Jacques Arnaud, "Representation of Gaussian beams by complex rays," Appl. Opt. 24, 538-543 (1985)

and

Donald DeJager and Mark Noethen, "Gaussian beam parameters that use Coddington-based Y-NU paraprincipal ray tracing," Appl. Opt. 31, 2199-2205 (1992)

Fields

  • chief: a Beam of Rays to store the chief ray
  • waist: a Beam of Rays to store the waist ray
  • divergence: a Beam of Rays to store the divergence ray
  • λ: beam wavelength in [m]
  • w0: local beam waist radius in [m]
  • E0: complex field value in [V/m]
  • parent: reference to the parent beam, if any (Nullable to account for the root beam which has no parent)
  • children: vector of child beams, each child beam represents a branching or bifurcation of the original beam, i.e. beam-splitting

Additional information

Beam parameters

Parameters of the beam, e.g. $w(z)$ or $R(z)$, can be obtained through the gauss_parameters function.

Astigmatism and abberations

It is assumed, but not forbidden, that the optical system contains non-flat or non-parabolic beam-surface-interactions that cause the beam to obtain astigmatism or higher-order abberations. These can not be represented by the GaussianBeamlet.

source

A GaussianBeamlet can be constructed via:

BeamletOptics.GaussianBeamletMethod
GaussianBeamlet(position, direction, λ, w0; kwargs...)

Constructs a Gaussian beamlet at its waist with the specified beam parameters.

Arguments

The following inputs and arguments can be used to configure the beamlet:

Inputs

  • position: origin of the beamlet
  • direction: direction of the beamlet
  • λ: wavelength of the beamlet in [m]. Default value is 1000 nm.
  • w0: beam waist (radius) in [m]. Default value is 1 mm.

Keyword Arguments

  • M2: beam quality factor. Default is 1
  • P0: beam total power in [W]. Default is 1 mW
  • z0: beam waist offset in [m]. Default is 0 m
  • support: Nullable support vector for the construction of the waist and div rays

Additional information

Waist offset

The z0 keyword arg. can be used in order to spawn a beam where the waist is not located at the specified position, but rather at an offset z0 in [m] along the chief ray axis.

Support vector

In order to calculate the basis vectors required for the beamlet construction, a random orthogonal vector is chosen. If results fluctuate due to the randomness of this vector, make sure to specify a fixed orthogonal support vector.

source

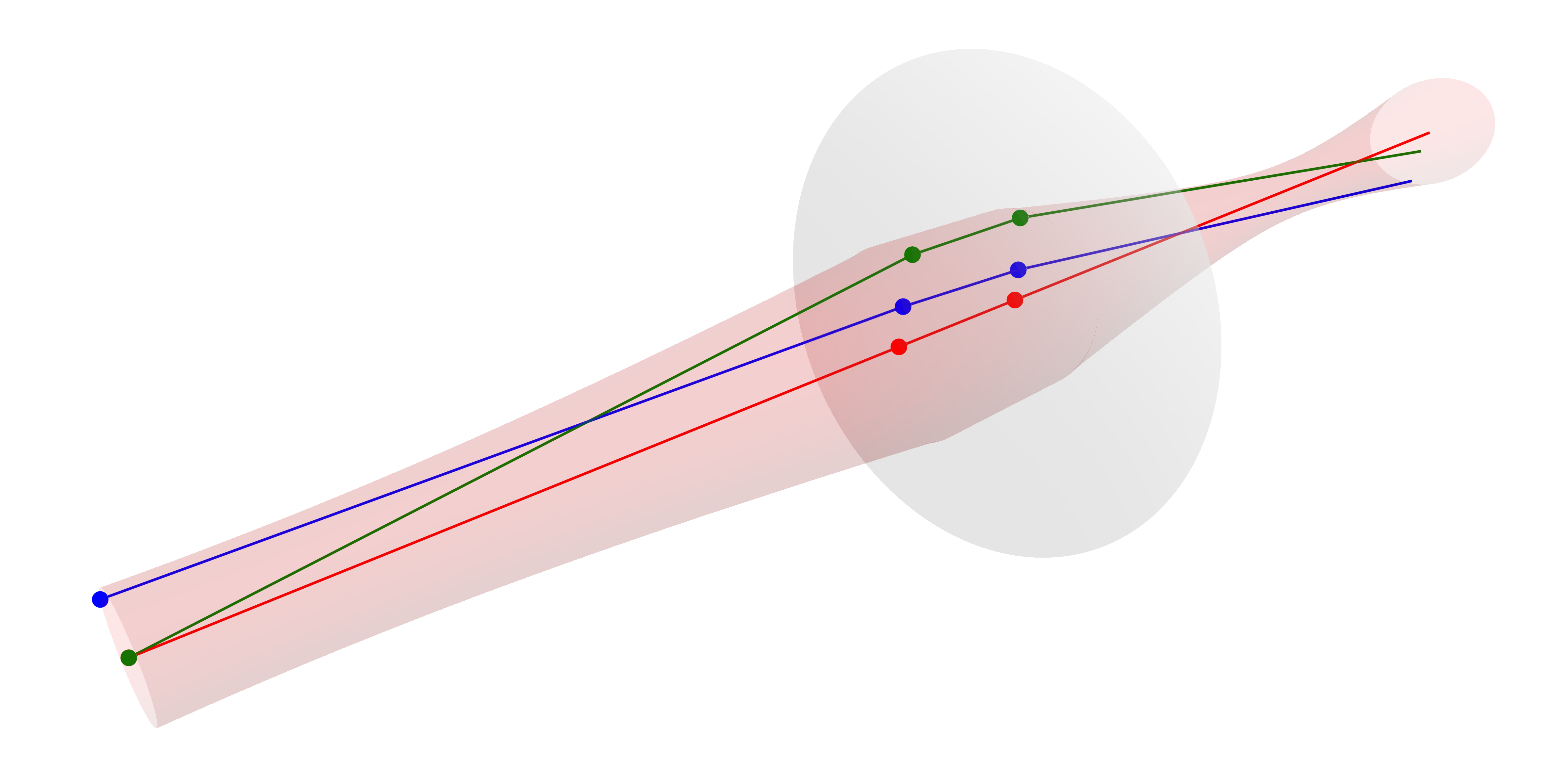

Obtaining the beam parameters

Once a GaussianBeamlet has been traced through an optical system, several parameters might be of interest for further analysis. In order to relate the traced geometrical beams/rays to the Gaussian parameters, the publications of Arnaud, Herloski et al. and DeJager et al. are used [8, 11, 12]. Consider the following system where a Gaussian beam with arbitrary parameters has been traced through a lens using the approach outlined in the Complex ray tracing section.

Complex ray tracing II

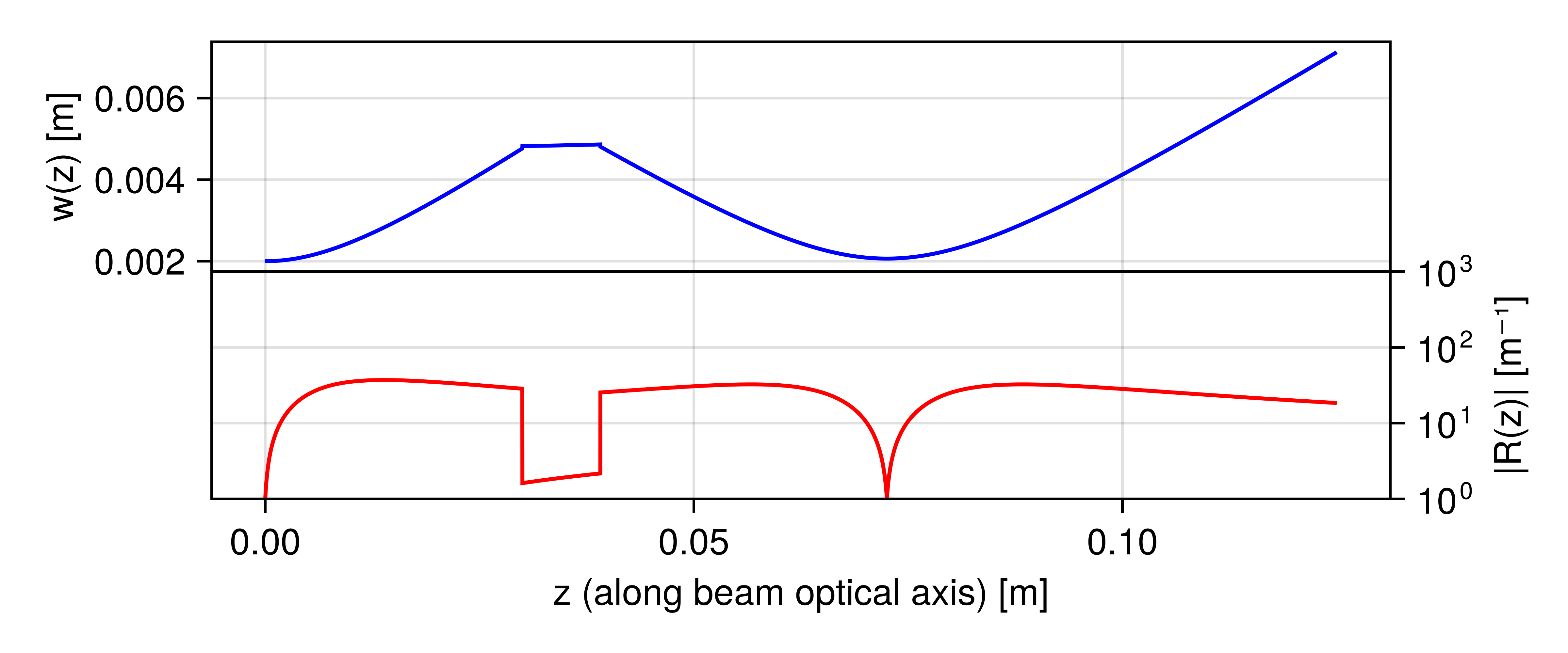

The user can obtain parameters such as the beam waist radius, the radius of curvature and more using the BeamletOptics.gauss_parameters function. Below the local waist radius and curvature $R = r^{-1}$ have been calculated for the example above.

Gauss beam parameters

Astigmatic Polarized Beamlets

  • Assumptions
    • homogeneous polarization distribution across waist
    • Lagrange invariant
Info

WORK IN PROGRESS
