Detectors

Detectors provide a way to evaluate beam data during optical simulations. They are designed to accumulate e.g. field data, enabling analysis of intensity distributions, interference patterns, and other beam properties.

Detectors are supposed to fall under the BeamletOptics.AbstractDetector type, which defines a interface for detector implementations.

Photodetector type

A concrete implementation to "measure" intensity distributions generated by a GaussianBeamlet is provided in the form of the Photodetector:

Photodetector(width, n)

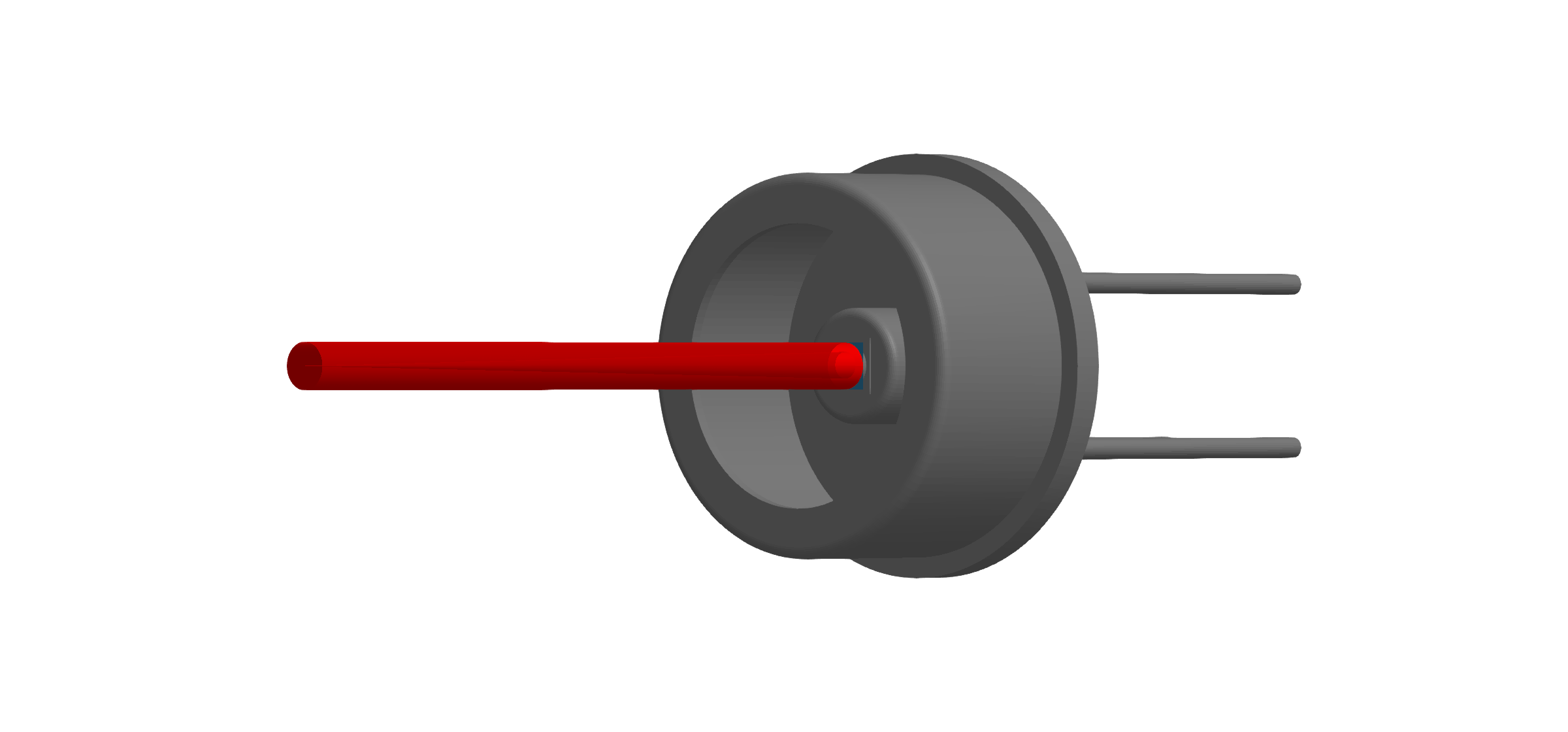

The interact3d model of the Photodetector can store complex electric field (E-field) values from intersecting GaussianBeamlets, enabling the reconstruction of spatial intensity distribution across its active surface. This data can be used to calculate e.g. beam interference patterns via the intensity function. The BeamletOptics.optical_power method can be used in order to obtain the total optical power at the detector. Below a rendered example of a detector model (FDS010) can be seen. The detector active area is marked in blue (1x1 mm²).

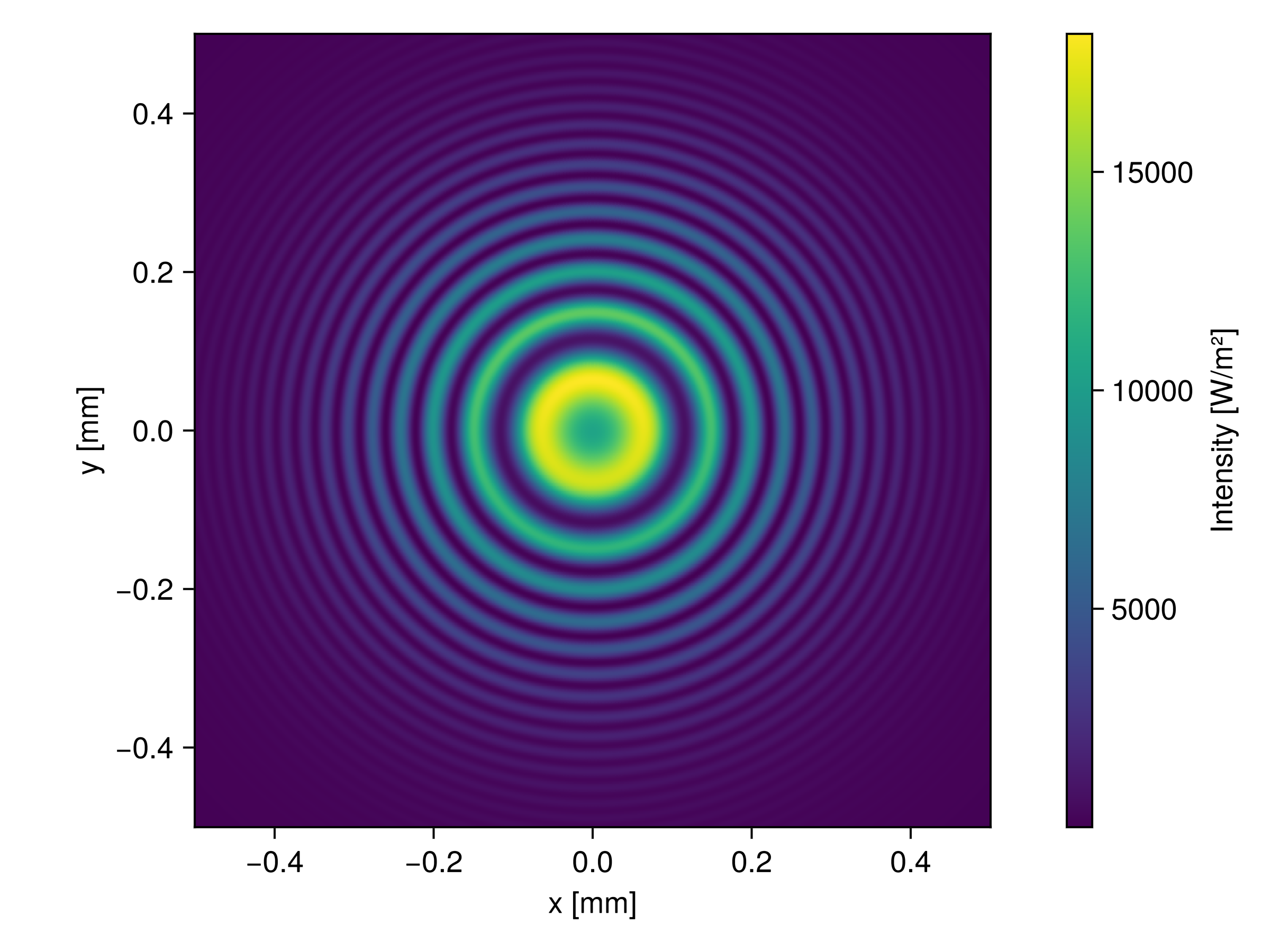

One of the use cases of the Photodetector is to analyse interference patterns. The figure below demonstrates an example intensity distribution captured by the detector pictured above, showing radial fringes due to a mismatch of the radii of curvature of the interfering GaussianBeamlets.

Spotdetector type

A straight forward detector that stores the BeamletOptics.Intersection position of an incoming Beam. The Spotdetector can be used to generate spot diagrams, which are commonly used to perform initial assessments of the optical performance of an imaging setup.

Spotdetector(width)

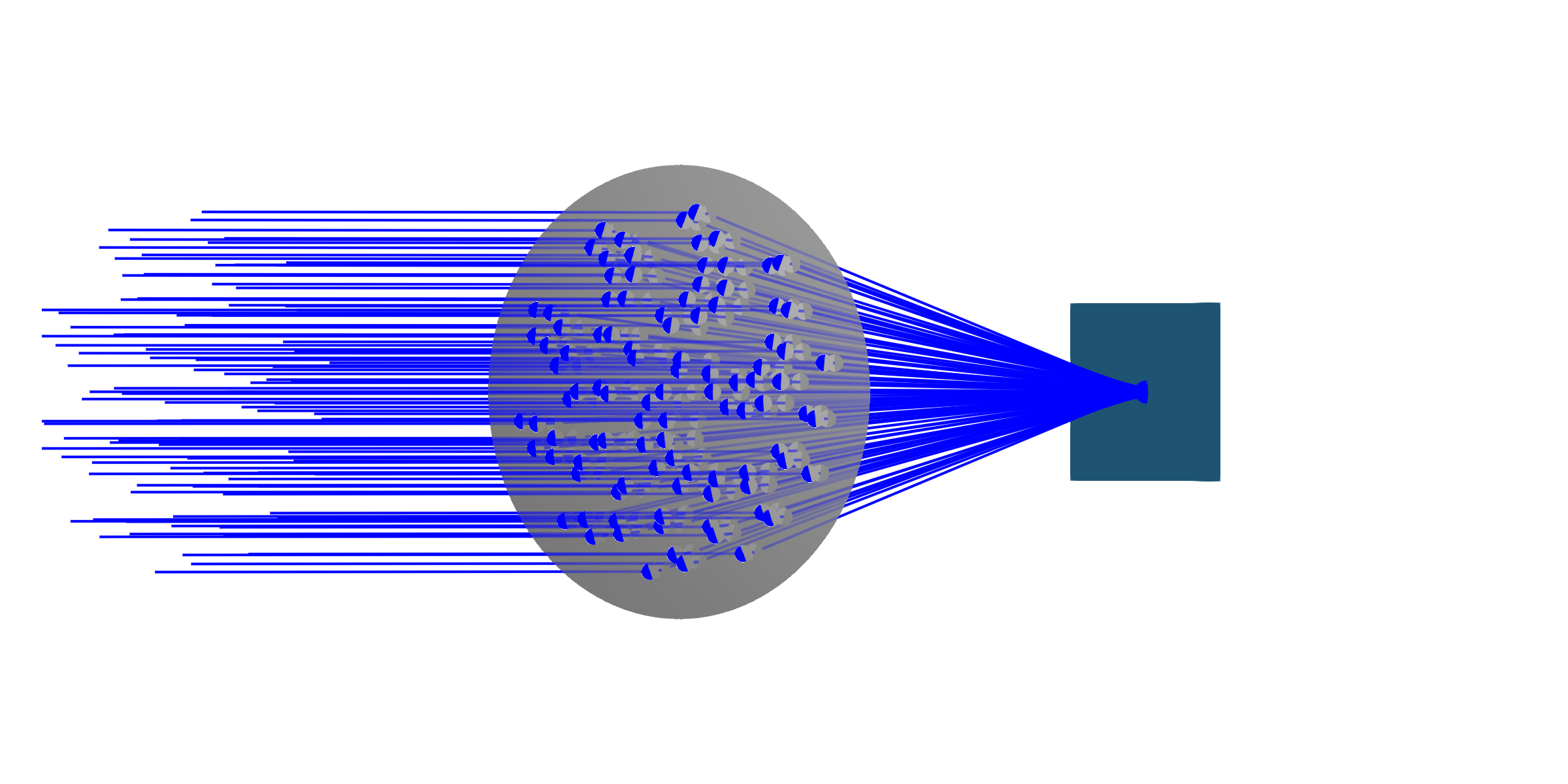

Below an optical system consisting of a collection of collimated Beams passing through a ThinLens is shown. A Spotdetector is positioned at the approximate focal plane to capture the resulting spot diagram.

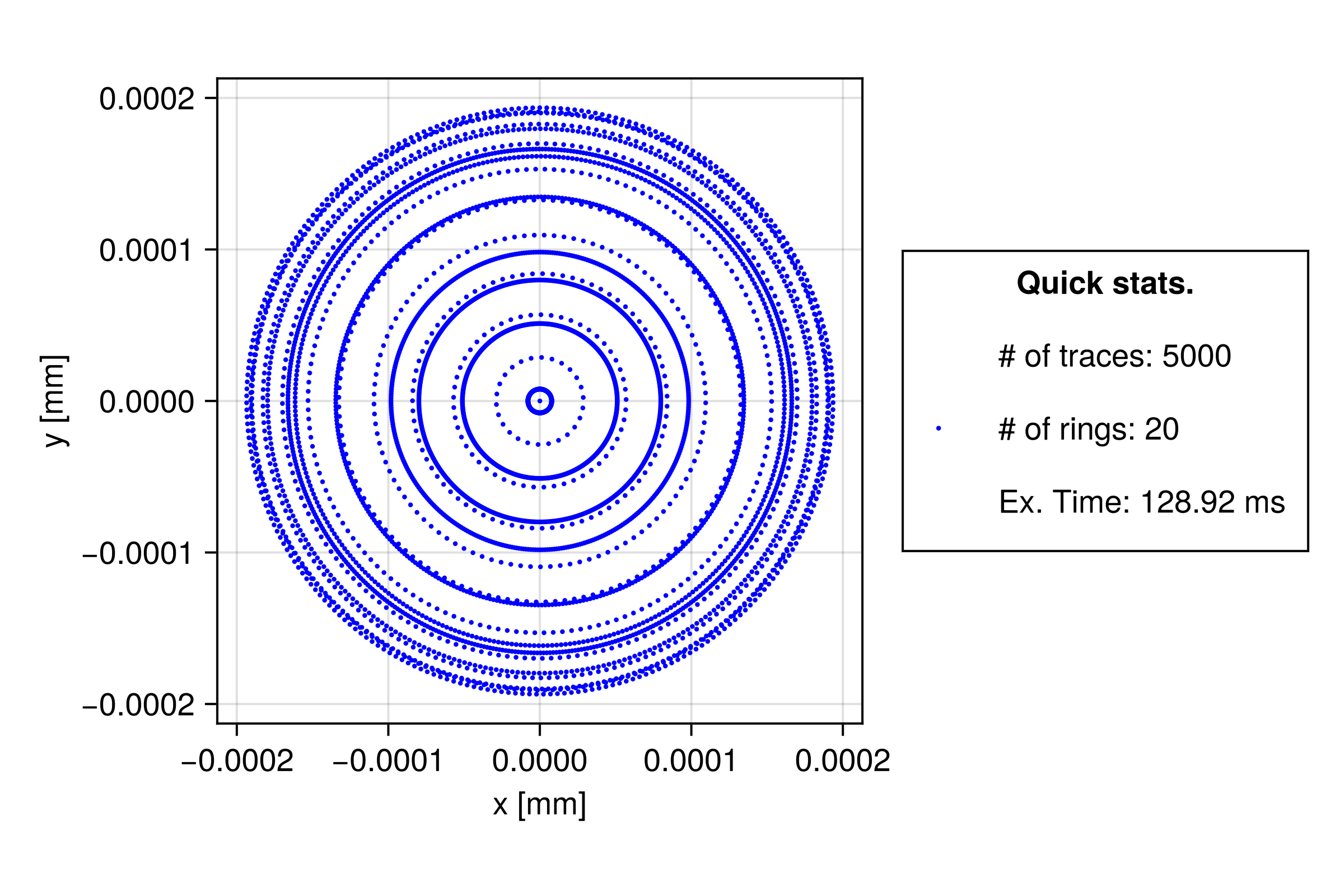

The beam bundle used to generate the spot diagram was created via the CollimatedSource constructor. The resulting spot diagram of the lens shown above is visualized below.

Point-spread-function detector type

The package offers a simple method to estimate the point spread function of a system. It is currently limited and requires careful assessment by the user, if the results are to be trusted.

To analyze the PSF of a imaging system a PSFDetector is added to the system at the plane and orientation where the PSF is requested. This is the same approach as for the other detector types.

Photodetector(width)

The intensity map together with the coordinate system of the detector can be retrieved after solving the system by calling the intensity function.

intensity(psf::PSFDetector{T};
          n::Int=100,
          crop_factor::Real=1,
          center::Symbol=:centroid,
          x_min = Inf,
          x_max = Inf,
          z_min = Inf,
          z_max = Inf,
          x0_shift::Real=0,
          z0_shift::Real=0) where T

Airy-Disc Example

This is a classic example where a collimated circular beam is imaged onto a point by a singlet lens. Due to the finite size of the aperture stop (in this case given by the 15 mm size of the beam), the diffraction limited intensity pattern is given by the Airy-disc:

\[I(r)=I_0\!\left[\frac{2J_1\!\bigl(\pi D r/(\lambda f)\bigr)}{\pi D r/(\lambda f)}\right]^2\]

With $r$ the radius from the origin, $I_0$ the maximum intensity, $J_1$ the Bessel function of the first kind of order one, $D$ the aperture width, $\lambda$ the wavelength and the focal length $f$.

# example parameters
l = 1e-3
R1 = 100e-3
R2 = Inf
d = 25.4e-3
n = 1.5
λ = 1e-6

# generate uniform source, lens and PSF detector
cs = UniformDiscSource([0, -10mm, 0], [0, 1, 0], 15e-3, λ)
lens = SphericalLens(R1, R2, l, d, x -> n)
psfd = PSFDetector(10e-3)

# shift detector into focus
translate3d!(psfd, [0, 200mm + 0.13mm, 0])

# build system
sys = System([lens, psfd])

solve_system!(sys, cs)

# retrieve intensity
x, z, I_num = intensity(psfd; n=500, crop_factor=5)

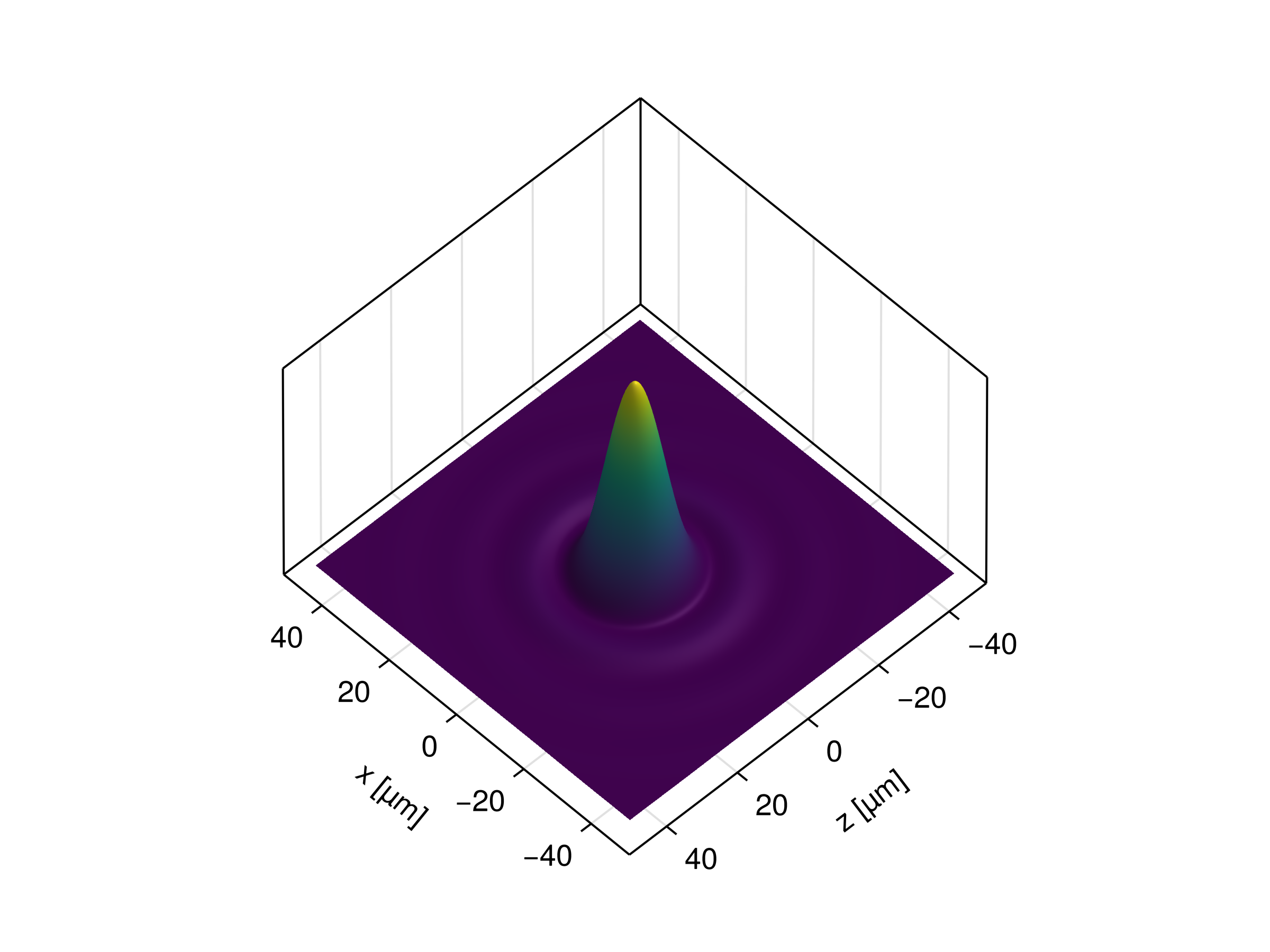

Visualizing the result yields the expected Airy-disk pattern.

Coma and Astigmatism Example

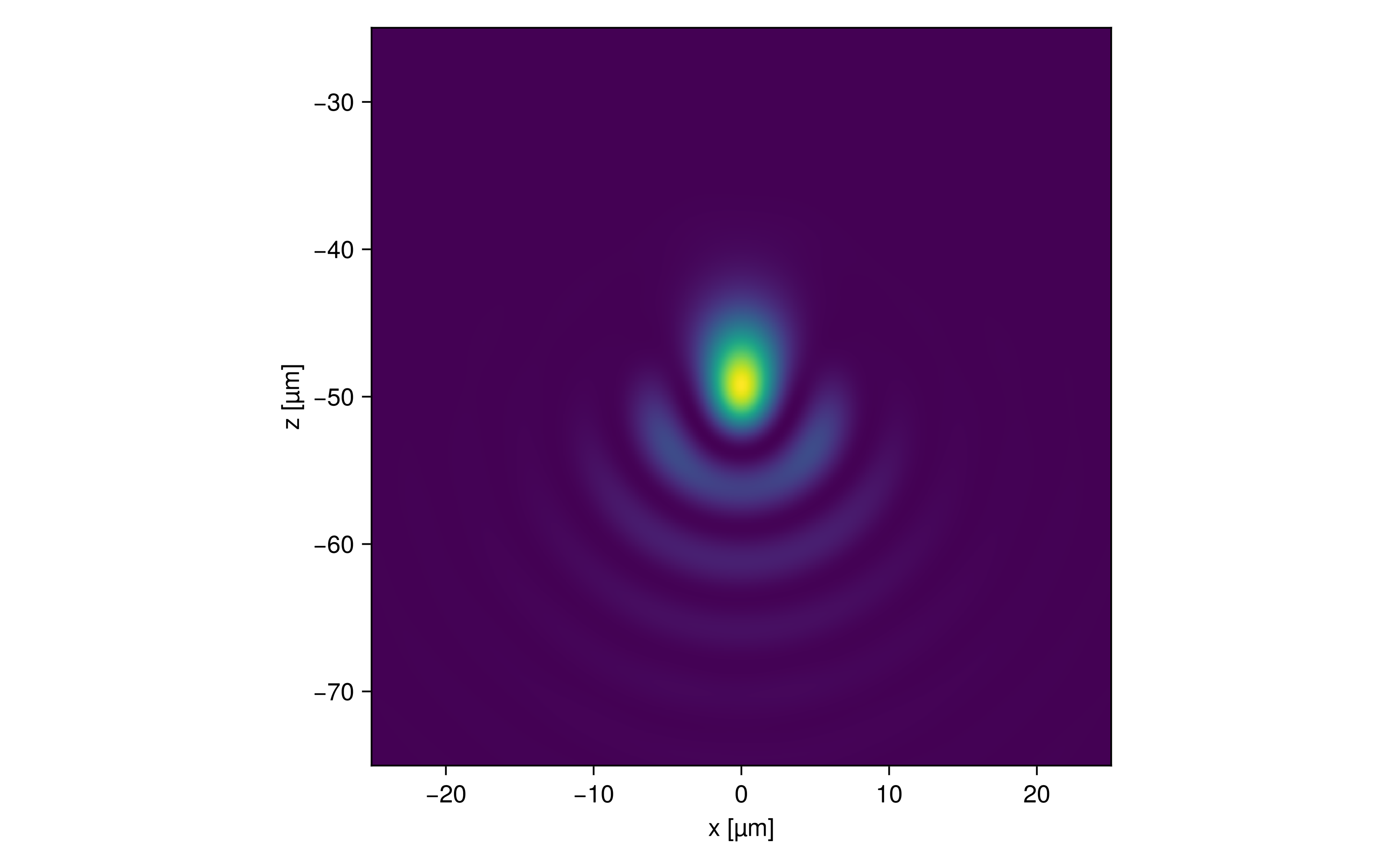

In this example, an aspheric lens images the collimated source onto a point but is tilted around the x-axis by 0.5 degrees. This results in aberrations distorting the stigmatic imaging and leading to coma and astigmatism.

k = -0.675
d = 75.0e-3
l = 15e-3
radius = 76.68e-3
A = [0*(1e3)^1, 2.7709219e-8*(1e3)^3, 6.418186e-13*(1e3)^5, -1.5724014e-17*(1e3)^7, -2.7768768e-21*(1e3)^9, -2.590162e-25*(1e3)^11]
AL75150 = Lens(
    EvenAsphericalSurface(radius, d, k, A),
    l,
    n -> 1.5006520430
)

xrotate3d!(AL75150, deg2rad(-0.5))

pd = PSFDetector(15e-3)

translate3d!(pd, [0, 158.1779e-3, 0.0])
system = System([AL75150, pd])

ps = UniformDiscSource([0, -0.1, 0], [0,1,0], 0.8*d, 1550e-9)

solve_system!(system, ps)
